Arch Fenders
Super arch fender is a one type rubber marine fender providing trouble-free service for a wide variety of berthing even under the most severe conditions. es un guardabarros marino de goma de un solo tipo que proporciona un servicio sin problemas para una amplia variedad de atraques incluso en las condiciones más severas.
Super type arch fenders upgraded from arch fender II, it is called V rubber fenders also. Among marine fenders, super arch rubber fenders have good anchorage, with features of super bearing capacity and higher energy absorption. Arch fender could be fitted vertically or horizontally, its energy absorption is 2.3 times higher than D type rubber mrine fenders and 3.5 times higher than cylindrical rubber fenders.
Super arch fender could be selectively bolted with low-friction, non-marking properities UHMW-PE face pads and frontal panels, this type of arch rubber fender is called SANP. The new design reduce bottom torsion of arch fender dramatically, prolong life-span of whole arch rubber fender system. UHMW-PE face pads are varied in colors and could be replaced easily. SAN and SANP arch rubber fenders are available in many sizes from 200 mm to 1000 mm high and 1000 mm to 3500 mm in length. There are many types of rubber compounds as standard. Special sizes are available also.
Features of super arch rubber fenders
- Easy to install and replace, heavy duty and reliable design, higher energy absorption and lower reaction force
- More suitable for docks, wharfs and heavy duty ships mooring
- Bolted-on UHMW-PE reduce the friction factor and shear force
Dimension of arch fenders

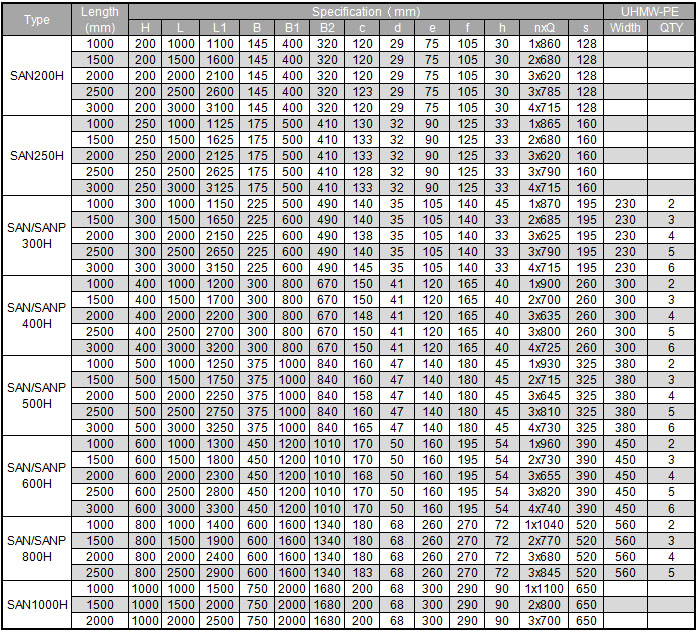

Arch rubber fenders dimensions

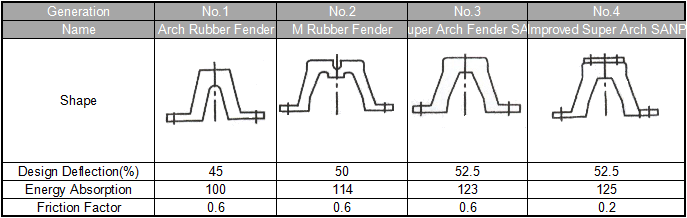

Types of arch rubber fenders

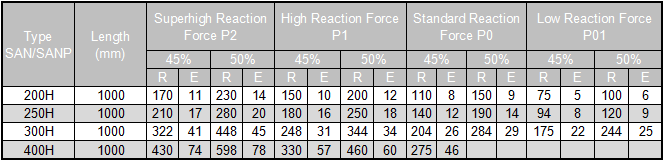

Arch rubber fenders performance
